Infinity 6000
The Infinity 6000 is the ultimate expression of Sands’ flagship sprayer range — the largest and most capable model in the Infinity family. With a 6,000 L capacity and all the performance you’d expect from a top‑end self‑propelled sprayer, it’s designed for maximum daily output on large farms and contract operations. Built on an advanced chassis with independent suspension, an enhanced CVT‑hydrostatic transmission, and industry‑leading spraying systems, the Infinity 6000 delivers powerful performance, precision control, and exceptional operator comfort — all with surprising manoeuvrability for a machine of its size.
New for 2026, the Infinity 6000 features our next‑generation boom levelling system, achieving accuracy within 3% of Europe’s top competitors. The fully bespoke Sands cab offers premium comfort for long days in the field, complete with a brand‑new LED heads‑up display, redesigned ergonomic joystick, and convenient side filling station.
Optional upgrades include front/rear line boom switching, PWM, individual nozzle control, and more — giving you complete control and flexibility to match your spraying needs.
Contact us today to explore the full specification options available for your new Infinity 6000!
Vehicle & Drivetrain
Engine
- Tier 5 Final Deutz 6‑cylinder water‑cooled diesel with AdBlue, producing approx 200 kW / 268 hp for maximum spraying performance.
Transmission & Drive
- Continuously Variable Transmission (CVT) coupled with hydrostatic drive for smooth, seamless power delivery. Features eco engine management for fuel efficiency and cruise control for long field operations.
Braking
- Primary hydrostatic braking with dynamic and boosted braking via joystick and foot brake for reliable stopping power in all conditions.
Hydraulics
- 200 L hydraulic oil tank (High‑Grade HV46) supplying all boom, steering, and suspension functions.
Steering & Chassis
- Selectable 4‑wheel steer with multiple modes: True Track, Max Front & Rear, Permanent, Speed‑Control, and Spray On/Off.
- Welded hollow steel chassis with large telescopic sliding axles (72–84 in) for adjustable track width.
Suspension & Clearance
- Self‑levelling hydraulic suspension with independent corner control and height correction.
- Ground clearance: ~1,200 mm, ideal for tall crops and rough terrain.
Spraying System
Tank Capacities
- Main spray tank: 6,000 L stainless steel for durability and minimal chemical residue.
- Wash/clean tank: 500 L internal, rear-mounted for easy access and cleaning.
Pump & Filtration
- High‑capacity 6‑cylinder pump, 450 L/min standard output.
- 3” main suction filter with flushing pressure filter and nozzle filters for reliable flow and chemical protection.
Boom & Spray Delivery
- Standard 24 m 2‑stage gullwing boom, with optional extensions up to 40 m and advanced boom levelling.
- Stainless steel 0.75″ spraylines with Prime & Purge recirculation.
- Triplet nozzle bodies included (3 tip sets); optional Quad, Quin, or Twin Line systems (e.g., Hypro Duo‑React).
- 7 boom sections standard for precise part-field control.
Plumbing & Induction Hopper
- Twin rotary valves manage self-fill, spray, wash, and pump-out operations.

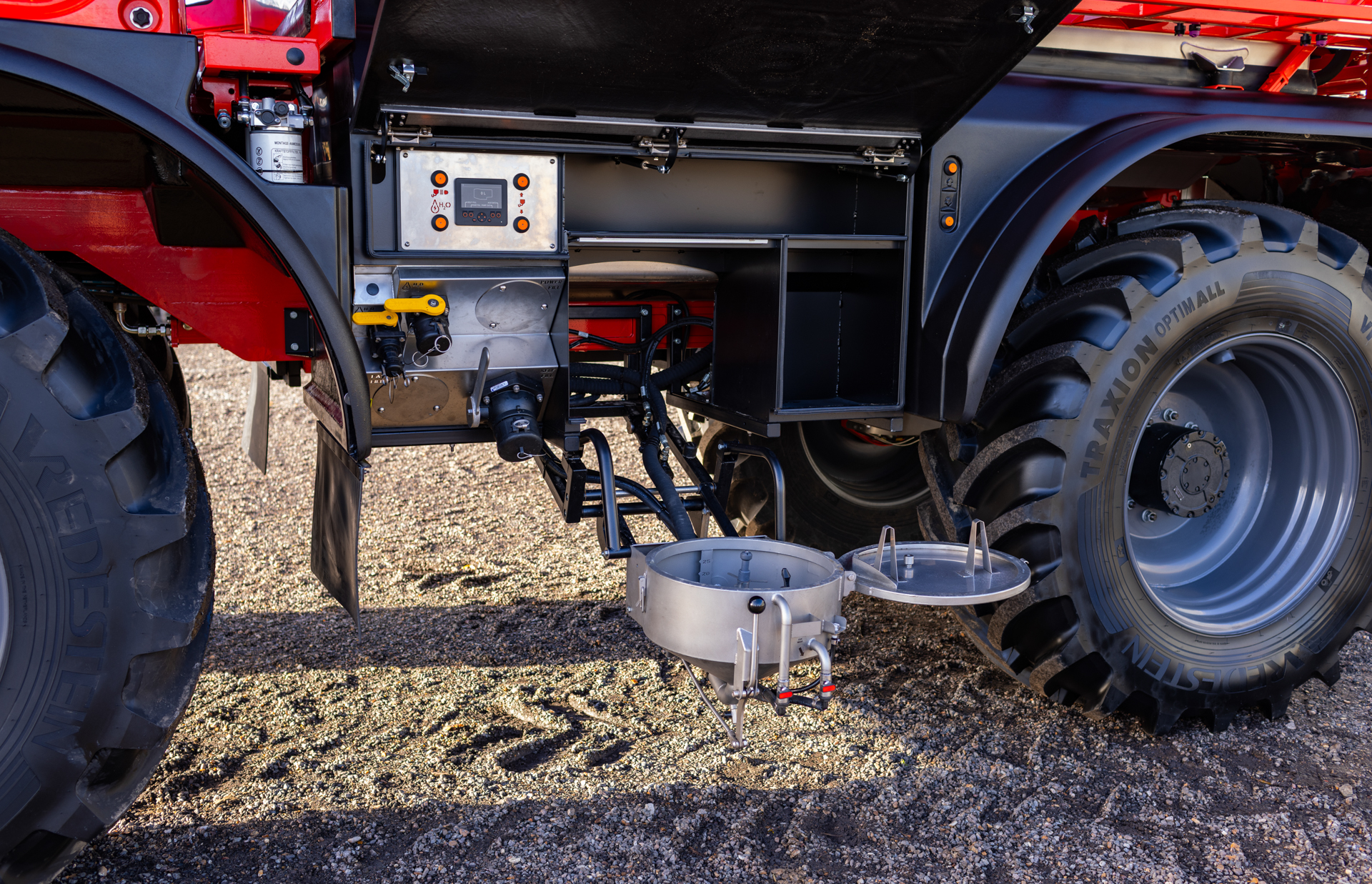

- Side-mounted 40 L powered stainless steel induction hopper with two wash nozzles and hand lance for convenient chemical loading.
Spray Height Range
- Minimum: ~0.40 m
- Maximum: ~2.50 m
GPS & Precision Control
- Compatible with Ag Leader, Trimble, TopCon, John Deere, and other major GPS systems for auto section control and precision guidance.
Cab & Operator Comfort
- Luxury high‑visibility cab with climate control, high‑back air seat, DAB radio, electric and heated mirrors, Category 4 carbon filtration, and extensive LED lighting.
- Adjustable steering column (height and rake) and in-cab joystick controls for forward/reverse, boom operation, and steering selection.
NEW Boom Levelling for 2026
Introducing our state-of-the-art boom leveling system, featuring Smart RAM Control with 5 Precision Sensors for unmatched accuracy and performance.
Full Sprayer Technology Options:
GPS Auto Section Control
Individual Nozzle Shut Off
PWM
Front/ Rear Line Switching
Spray Tanks
Designed for chemical resistance and durability, made of stainless steel suited for agricultural sprays.
Dimensions & Performance
- Wheelbase: ~3.75 m
- Turning circle: ~7.0 m (excellent for a large sprayer)
- Ground clearance: ~1,200 mm
- Fuel tank: ~280 L
- Max road speed: ~50 km/h
- Unladen weight: ~11.2 tonnes (6,000 L spec with extended booms)
- Overall width: ~2.9 m
- Overall length: ~8.6 m
- Overall height: ~3.8 m
Key Features of NEW Sands Sprayers
Wide array of booms
Our booms can go up to 40 metres in length, covering more ground with precison over your whole farm.
Bespoke Sands Cab
When designing our own cab, we rigorously tested competitors across the market to ensure the best possible experience for operators.
brand new boom levelling
BRAND NEW for 2026 – a state-of-the-art boom levelling system, delivering maximum precision across the entire boom on your farm.
Side Filling Station
With two washing nozzles and an additional hand lance for external cleaning, also available as a rear filling station on Horizon models.
Technical features
Fantastic array of technology packages availale on your sprayer: including all makes of GPS and Front/ Rear Line Switching.
Boom sizing
Sands booms can go up to 40 m with Infinity models and up to 36 m with Horizon models, covering more ground with precision.
FULL LED SCREEN
Overhead Screen puts filling, lights, machine checks, and hydraulic axles at your fingertips in the cab.
Precision Boom
We offer individual nozzle shut-off and PWM on both models to ensure maximum precision and accuracy for your crops.
30k Road Speed
Text here
Key fact here
Text here
FULL LED LIGHT PACKAGE
With two washing nozzles and an additional hand lance for external cleaning, providing you with a simplified operator experience.
