sprayers
Infinity 5000
The Infinity is Sands’ flagship sprayer range, with the 5000 L model being the entry point and the Infinity 6000 representing the largest option. The Infinity 5000 is a premium self-propelled sprayer, built on an advanced chassis featuring independent suspension, an enhanced CVT‑hydrostatic transmission, and robust spraying systems. It combines high output, precise control, and excellent operator comfort with impressive manoeuvrability for its size — making it ideal for large farms or contract sprayers that require extended daily capacity without frequent refills.
New for 2026, the Infinity 5000 introduces an advanced boom levelling system that achieves accuracy within 3% of Europe’s leading manufacturers. The cab is fully bespoke by Sands, providing exceptional comfort for long field days. Additional upgrades include a brand-new LED heads-up display, a redesigned joystick, and a side filling station for maximum convenience.
Optional features include front/rear line boom switching, PWM, individual nozzle control, and much more. Contact us today to explore the full range of specifications available for your new Infinity 5000!
Vehicle & Drivetrain
Engine
- Tier 5 Final Deutz 6‑cylinder water‑cooled diesel with AdBlue producing approx 180 kW / 242 hp for strong spraying performance.
Transmission & Drive
- Continuously Variable Transmission (CVT) coupled with a hydrostatic drive — links engine revs to transmission for seamless power delivery. Features eco engine management for fuel efficiency in field and road modes, plus cruise control.
Braking
- Primary hydrostatic braking with dynamic and boosted braking via joystick and foot brake for reliable stopping power.
Hydraulics
- 200 L hydraulic oil tank (High‑Grade HV46).
Steering & Chassis
- Selectable 4‑wheel steer (foot pedal) with multiple modes: True Track, Max Front & Rear, Permanent, Speed‑Control, and Spray On/Off.
- Welded hollow steel chassis with large telescopic sliding axles (72–84 in).
Suspension & Clearance
- Self‑levelling hydraulic suspension with independent corner control and height correction.
- Ground clearance: ~1200 mm — excellent for rough terrain and tall crops.
Spraying System
Tank Capacities
- Main spray tank: 5000 litres of stainless steel construction for durability and reduced chemical residue.
- Wash/clean tank: 500 L (internal) mounted over the rear axle.
Pump & Filtration
- Standard 6‑cylinder 400 L/min pump.
- 3” main suction filter with flushing pressure filter + nozzle filters.
Boom & Spray Delivery
- Standard 24 m 2‑stage gullwing boom; options up to 40 m with advanced boom levelling.
- Stainless steel 0.75″ spraylines with Prime & Purge recirculation.
- Triplet nozzle bodies included (3 tip sets); optional Quad, Quin, or Twin Line (e.g., Hypro Duo‑React).
- Standard 7 boom sections for precise part‑field control.
Plumbing & Induction Hopper
- Twin rotary valves manage self‑fill, spray, wash, and pump‑out.
- New side‑mounted 40 L stainless steel induction hopper (powered) with two wash nozzles + hand lance.
Spray Height Range
- Min: ~0.40 m
- Max: ~2.50 m.
GPS & Precision Control
- Compatible with major GPS brands (Ag Leader, Trimble, TopCon, John Deere, etc.) for auto section control and guidance.
Cab & Operator Comfort
- High‑visibility luxury cab with climate control, high‑back air seat, DAB radio, electric & heated mirrors, Category 4 carbon filtration, and extensive LED lighting.
- Adjustable steering column (height & rake) and an in‑cab joystick for forward/reverse, boom control, and steering selection.
Key Innovations & Options
Steering Modes
- Multi‑function selectable 4‑wheel steer improves manoeuvrability and headland turns.
Boom Technology
- Larger, lighter steel booms with 5‑sensor levelling and auto‑lowering during fold/unfold.
Controls
- New Sands Overhead Screen system provides fingertip control of major machine functions and health monitoring.
Track Width
- Adjustable track width via telescopic axles supports different crop rows and field conditions.
NEW Boom Levelling for 2026
Introducing our state-of-the-art boom leveling system, featuring Smart RAM Control with 5 Precision Sensors for unmatched accuracy and performance.
Full Sprayer Technology Options:
GPS Auto Section Control
Individual Nozzle Shut Off
PWM
Front/ Rear Line Switching
Spray Tanks
Designed for chemical resistance and durability, made of stainless steel suited for agricultural sprays.
Dimensions & Performance
- Wheelbase: ~3.75 m
- Turning circle: ~7.0 m (excellent for a large sprayer).
- Ground clearance: ~1200 mm
- Fuel tank: ~280 L
- Max road speed: ~50 km/h
- Unladen weight: ~10.8 tonnes (5000 L spec with ~36 m booms).
- Overall width: ~2.9 m
- Overall length: ~8.4 m
- Overall height: ~3.7 m
Key Features of NEW Sands Sprayers
Wide array of booms
Our booms can go up to 40 metres in length, covering more ground with precison over your whole farm.
Bespoke Sands Cab
When designing our own cab, we rigorously tested competitors across the market to ensure the best possible experience for operators.
brand new boom levelling
BRAND NEW for 2026 – a state-of-the-art boom levelling system, delivering maximum precision across the entire boom on your farm.
Side Filling Station
With two washing nozzles and an additional hand lance for external cleaning, also available as a rear filling station on Horizon models.
Technical features
Fantastic array of technology packages availale on your sprayer: including all makes of GPS and Front/ Rear Line Switching.
Boom sizing
Sands booms can go up to 40 m with Infinity models and up to 36 m with Horizon models, covering more ground with precision.
FULL LED SCREEN
Overhead Screen puts filling, lights, machine checks, and hydraulic axles at your fingertips in the cab.
Precision Boom
We offer individual nozzle shut-off and PWM on both models to ensure maximum precision and accuracy for your crops.
30k Road Speed
Text here
Key fact here
Text here

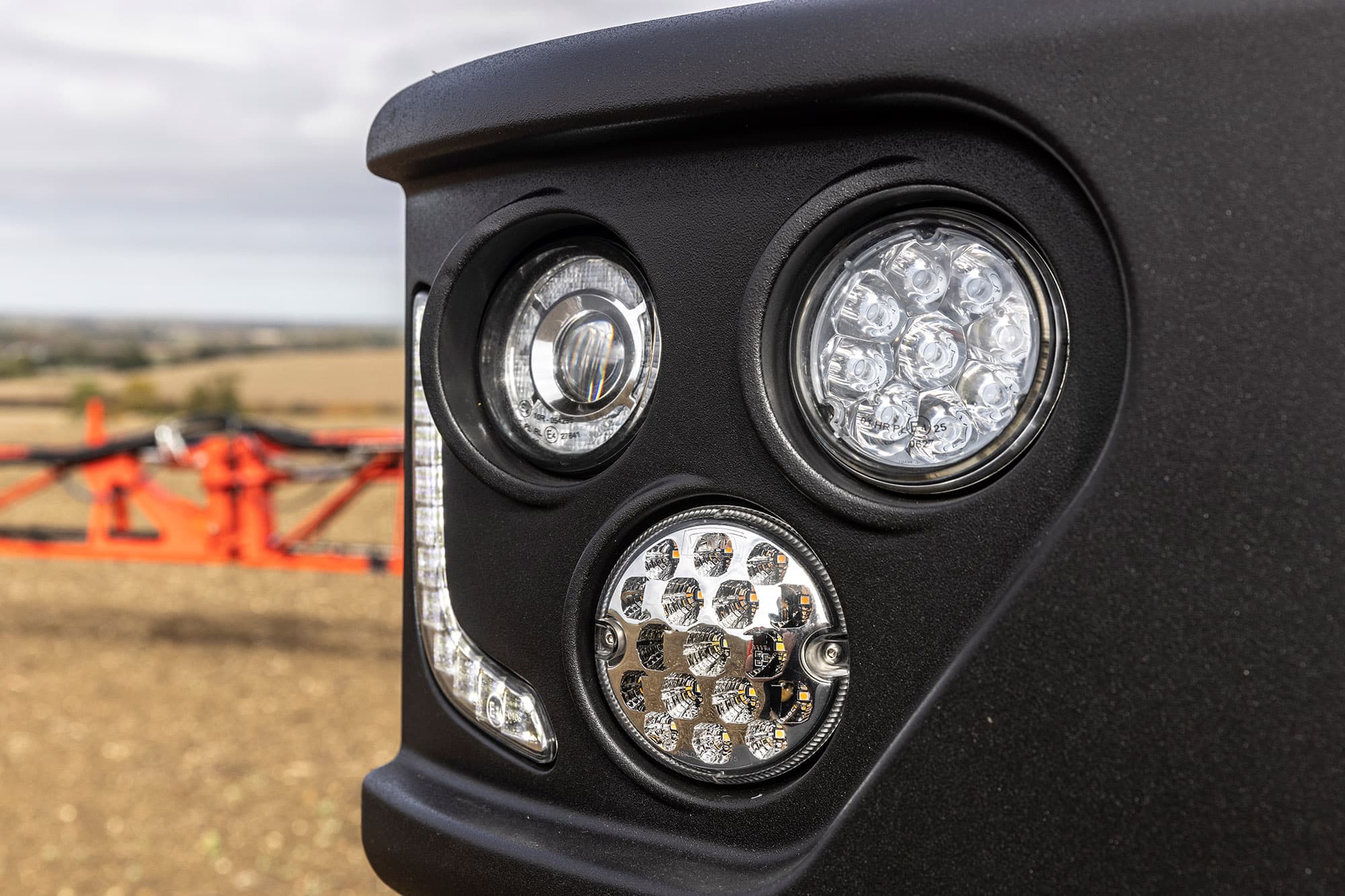

FULL LED LIGHT PACKAGE
With two washing nozzles and an additional hand lance for external cleaning, providing you with a simplified operator experience.
