USED sprayers

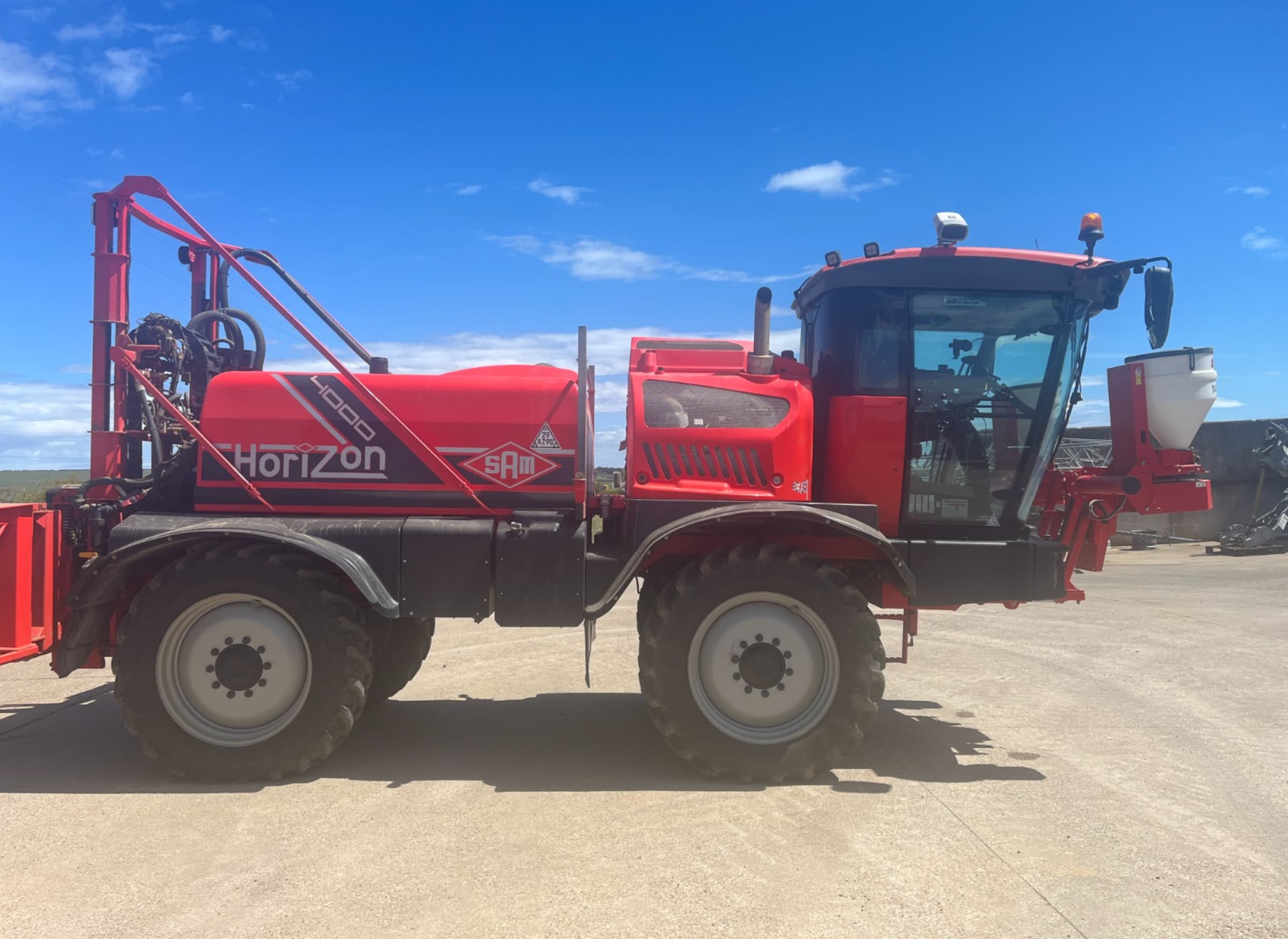

Sands Horizon 4000
Sands Used Self-Propelled Sprayer – Available September 2026
Available from September 2026, this well-equipped Sands self-propelled sprayer has approximately 4,400 operating hours and is specified with a range of premium features to maximise spraying accuracy, operator comfort, and productivity.
Key Features:
- Approx. 4,400 operating hours
- 36m VG positive boom
- Duo React nozzle bodies
- Ag Leader InCommand display with 12-section control for precise application and reduced overlap
- NORAC UC5 automatic boom height control
- Hydraulic auto steer
- Dual Ride suspension for exceptional comfort and stability
- Stocks Duo Front Linkage
- Hydraulic axles
- High-capacity 400 L/min twin-speed spray pump
- 3" Fast Fill system
- 3" Etaps
- High-level road lights and strobe beacons for increased visibility during transport
- Mudguard extensions
- Reversing camera
- Integrated toolboxes for convenient onboard storage
Tyres:
- Front: 380/85R34
- Rear: 600/60R30
This machine has been maintained to a high standard and offers an excellent specification, combining precision guidance, advanced boom control, and operator-focused features. With its 36m VG boom, high-capacity filling system, and proven spraying technology, it is ideally suited to demanding, high-output arable operations.
Available from September 2026.
Available - September 2026
Approx. 4400 hours
36M VG boom (positive)
Duo React nozzle bodies
Agleader In Command (12 Sections)
Norac UC5
Mudguard extensions
Dual ride
Hydraulic auto steer
Stocks Duo Front Linkage only
Hydraulic axles
400LPM twin speed spray pump
High level road and strobes
3” Fast Fill
3” Etaps
Mudguard Extensions
Camera
Toolboxes
380/85R34
600/60 R30
video showcase
Key Features of Sands Sprayers
Wide array of booms
Our booms can go up to 40 metres in length, covering more ground with precison over your whole farm.
Bespoke Sands Cab
When designing our own cab, we rigorously tested competitors across the market to ensure the best possible experience for operators.
brand new boom levelling
BRAND NEW for 2026 – a state-of-the-art boom levelling system, delivering maximum precision across the entire boom on your farm.
Side Filling Station
With two washing nozzles and an additional hand lance for external cleaning, also available as a rear filling station on Horizon models.
Technical features
Fantastic array of technology packages availale on your sprayer: including all makes of GPS and Front/ Rear Line Switching.
Boom sizing
Sands booms can go up to 40 m with Infinity models and up to 36 m with Horizon models, covering more ground with precision.
FULL LED SCREEN
Overhead Screen puts filling, lights, machine checks, and hydraulic axles at your fingertips in the cab.
Precision Boom
We offer individual nozzle shut-off and PWM on both models to ensure maximum precision and accuracy for your crops.
30k Road Speed
Text here
Key fact here
Text here
FULL LED LIGHT PACKAGE
With two washing nozzles and an additional hand lance for external cleaning, providing you with a simplified operator experience.
Here's some of our used machines
.jpeg)
.jpeg)
A FAMILY BUSINESS
OVER 125 YEARS IN THE FARMING WORLD
Based in Catfield, Norfolk, our machines are known for quality, strength, performance and overall reliability. There is no hiding we are a family business that has been in the farming world for over 125 years, from farming in Norfolk to supplying crop protection products with a previous company, to day manufacturing crop sprayers and continuing to run our farm in Norfolk.
Sands Agricultural Machinery was founded in 1973 by Neal Sands, building the first sprayer for our contracting business. The ban on aerial spraying, and the need for a high clearance machine, led to farmers and contractors asking us to produce self-propelled sprayers for them.
